KINGROON ABS, null
Latest price$15.99
| Manufacturer | KINGROON |
| Filament type | ABS |
| Data sheet | Not available |
| Format | 1.75 mm |
| Finish | Standard |
| Color | |
| Warranty | 1 Year |
| Availability | In Stock |

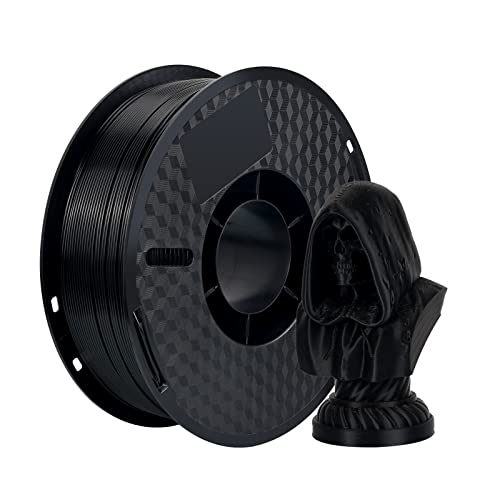

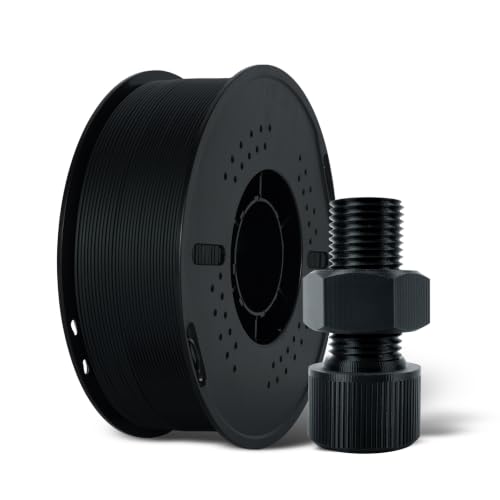

| Image |  Kingroon ABS 3D Printer Filament 1.75mm - High Strength, Heat Resistant Filament for Functional Prototypes, Mechanical Parts,1kg Spool, Black |
Technical properties
| Density | 1.05 g/cm³ | ISO 1183 |
| Melting temperature | 200 °C | DSC |
| Vicat softening temperature | 94 °C | ISO 306, GB/T 1633 |
| Young's modulus (X-Y) | 2010-2390 MPa ±190 | ISO 527, GB/T 1040 |
| Young's modulus (Z) | 1850-2070 MPA ±110 | ISO 527, GB/T 1040 |
| Tensile strength (X-Y) | 30-36 MPa ±3 | ISO 527, GB/T 1040 |
| Tensile strength (Z) | 26-30 MPa ±2 | ISO 527, GB/T 1040 |
| Elongation at break (X-Y) | 9.5-11.5 % ±1 | ISO 527, GB/T 1040 |
| Elongation at break (Z) | 3.9-5.5 % ±0.8 | ISO 527, GB/T 1040 |
| Bending modulus (X-Y) | 1770-1990 MPa ±110 | ISO 178, GB/T 9341 |
| Bending modulus (Z) | 1490-1690 MPa ±100 | ISO 178, GB/T 9341 |
| Bending strength (X-Y) | 58-66 MPa ±4 | ISO 178, GB/T 9341 |
| Bending strength (Z) | 35-43 MPa ±4 | ISO 178, GB/T 9341 |
| Impact strength (X-Y), notched | 19.3-23.7 kJ/m² ±2.2 | ISO 179, GB/T 1043 |
Characteristics
| Chemical resistance: acids | Resistant | Data Sheet |
| Chemical resistance: alkalis | Resistant | Data Sheet |
| Chemical resistance: organic solvents | Not resistant to some organic solvents | Data Sheet |
| Chemical resistance: oils and grease | Not resistant to some kinds of oil and grease | Data Sheet |
| Solubility in water | Insoluble in water | Data Sheet |
Print suggestions
| Nozzle temp | 240-270 °C |
| Build surface temp | 80-100 °C |
| Chamber temperature | 45-60 °C |
| Retraction distance | 0.8-1.4 mm |
| Retraction speed | 20-40 mm/s |
| Threshold overhang angle | 70 ° |
| Max bridging length | 40 mm |
| Cooling fan | 0 - 80% |
| Support material | Turn on |
| Build surface material | Engineering Plate, High Temperature Plate, Textured PEI Plate |
| Build surface treatment | Glue |
| Drying temperature | 80 °C |
| Drying time | 8 hours |
| Storage humidity | 20 % |
| Nozzle size | 0.2-0.8 mm |
| Annealing recommended | - |
| Annealing temperature | 80-90 °C |
| Annealing time | 6-12 hours |
